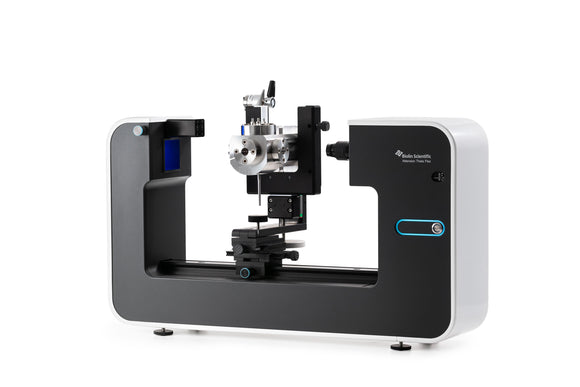

Theta High Pressure for automated measurements using liquids, TF300-HPC Auto
-
Das Attension® Theta High Pressure ist ein Tensiometer zur Messung der Benetzbarkeits- und Grenzflächen-Spannung bei hohem Druck und hohen Temperaturen im Rahmen der Forschung zur Ölgewinnung. Unter Berücksichtigung der rauen Bedingungen eines Ölreservoirs ist das Instrument so konzipiert, dass es einfach zu bedienen ist und dennoch umfangreiche Messmöglichkeiten bietet. Diese Konfiguration wird für automatische Hochdruckmessungen mit Flüssigkeitsproben empfohlen.
-
Preis €€€€€ Lieferzeit 10-12 Wochen Nummer TF300-HPC Auto
HPC1 Manual measurements of liquids |
HPC1-Auto Automated measurements of liquids |
HPC2-Auto Automated measurements of liquids and gases |
|
Included high pressure pumps |
2 manual pumps | 2 automated HPLC pumps | 1 automated syringe pump 1 automated HPLC pump |
Temperature range |
ambient...200C | ambient...200C | 1...200C |
Measurement types |
Surface tension, interfacial tension, contact angle, surface free energy | ||
Maximum pressure |
400 bar | ||
Chamber volume |
85ml (without piston), 40-62ml (with piston) | ||
Pressure control options |
Pressure increase by piston or by adding more liquid/gas with pump | ||
Sample introduction and flushing |
Through integrated 6-port valve | ||
Max solid sample size |
20 mm x 20 mm x 8 mm (xyz) | ||
Maximum camera resolution |
1984 x 1264 px | ||
Maximum measuring speed |
3009 fps | ||
All-inclusive software |
OneAttension | ||
Dimensions |
74 cm x 25 cm x 61 cm (L x W x H) for Theta and chamber | ||
Weight |
16 kg (Theta and chamber) | ||
Power supply |
100 - 240 V AC | ||
Frequency |
50 - 60 Hz | ||
Recommended system requirements |
2 GHz processor, 2 GB RAM, 120 GB hard disk drive1, 1024x768 resolution, 1 USB2 or USB3 port, 1 USB3 port, 1 additional USB2 or USB3 port if Peltier used, Windows7/8/10 (32 or 64 bit) |
